Measure the master cylinder depth, lock the setting, and transfer it directly to the brake booster push rod. A simple way to reduce guesswork during brake master cylinder installation.

Measure · Lock · Transfer · Adjust

🎯 Accurate Push Rod Adjustment

Getting the brake booster push rod position right can be difficult when you are relying on visual estimates alone.

This adjustment tool lets you measure the master cylinder piston depth and transfer that measurement directly to the brake booster, helping you set the push rod position more consistently.

✔ Less guesswork
✔ Fewer repeated installations
✔ Easier depth comparison
✔ Designed for brake system service

🧲 Magnetic Ends Hold the Tool in Position

Built-in magnetic contact points help keep the gauge positioned against compatible metal surfaces while you take measurements.

That means less slipping, easier one-person operation, and more control while adjusting the center measuring rod.

Set it. Hold it. Measure with confidence.

⚙️ Measure. Lock. Transfer.

Using the tool takes only a few straightforward steps:

STEP 1 — Position on the Master Cylinder
Place the master-cylinder side of the gauge against the mounting surface.

STEP 2 — Set the Measuring Rod
Adjust the center rod until it reaches the center of the master cylinder piston recess without pushing the piston inward.

STEP 3 — Lock the Setting
Secure the adjustment knob so the measured depth stays in position.

STEP 4 — Transfer to the Brake Booster
Place the opposite side against the brake booster and compare the push rod position with the stored measurement.

🔧 Less Trial-and-Error During Installation

Instead of repeatedly installing and removing the master cylinder to check push rod position, this gauge lets you compare both measurements before final assembly.

LESS GUESSING. FEWER REINSTALLS.

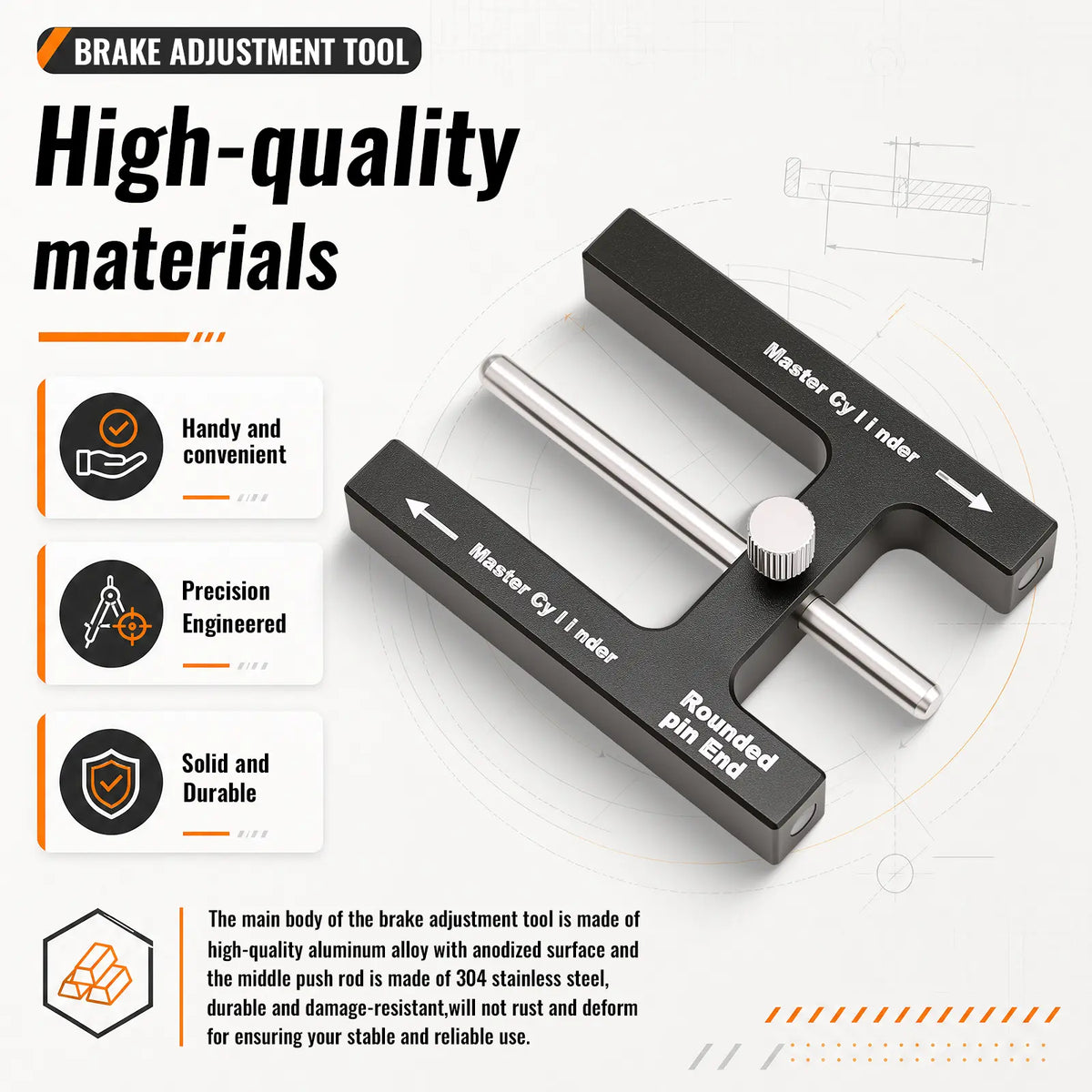

💪 Durable Metal Construction

The main gauge body is made from aluminum alloy with an anodized finish, while the center measuring rod is made from 304 stainless steel.

Designed for repeated workshop and garage use.

✔ Aluminum alloy body
✔ 304 stainless steel measuring rod
✔ Corrosion-resistant construction
✔ Solid and reusable design

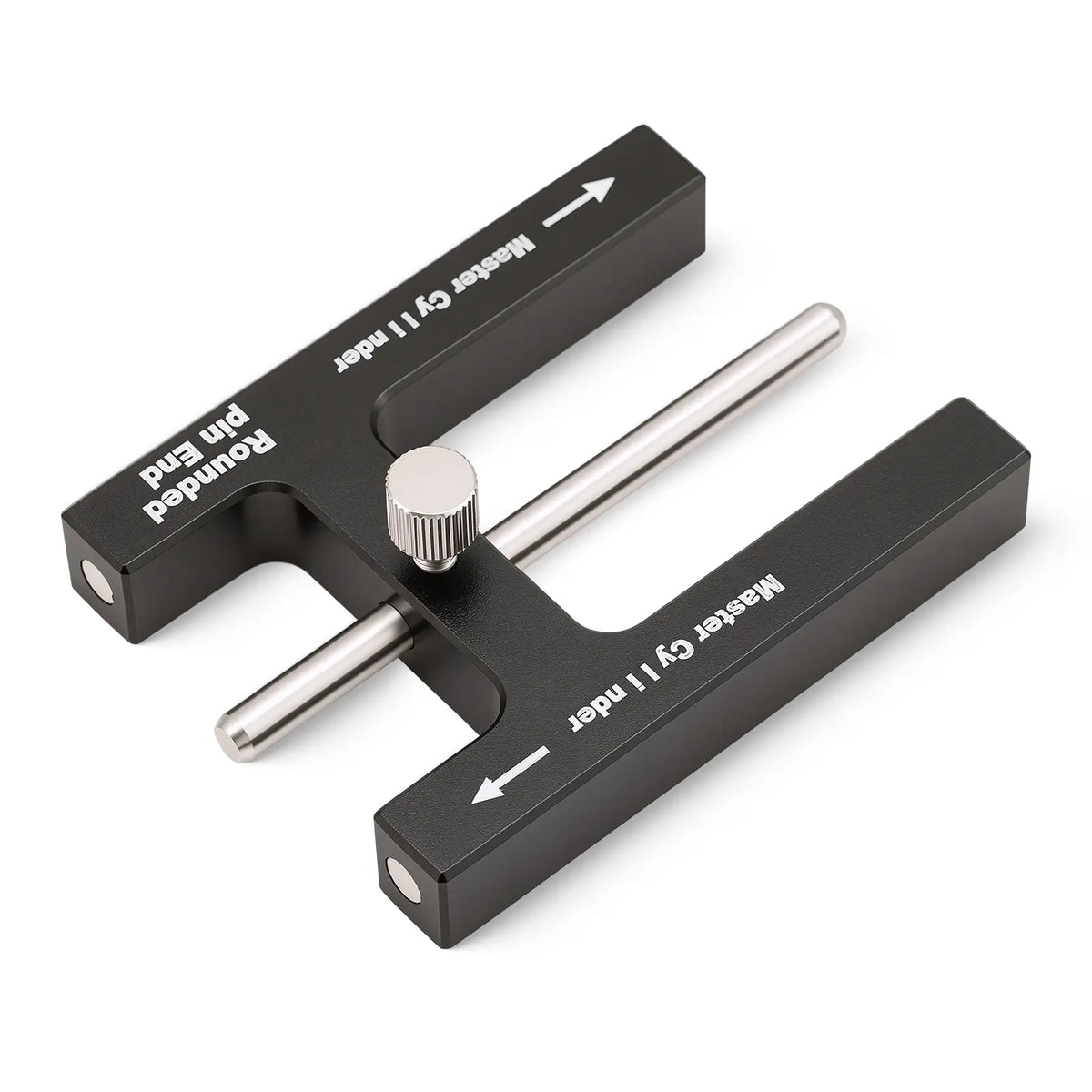

🔩 Fine Adjustment for Better Control

The adjustable center rod and locking knob make it easy to fine-tune the measuring position before transferring the setting to the brake booster.

The rounded measuring pin helps create a clear reference point when checking piston and push rod depth.

🚗 Made for Brake System Service

A useful addition to the toolbox for:

• Brake master cylinder replacement
• Brake booster replacement
• Push rod adjustment
• Brake system restoration
• Garage maintenance
• Professional automotive service
• DIY vehicle repair

📏 Compact & Easy to Store

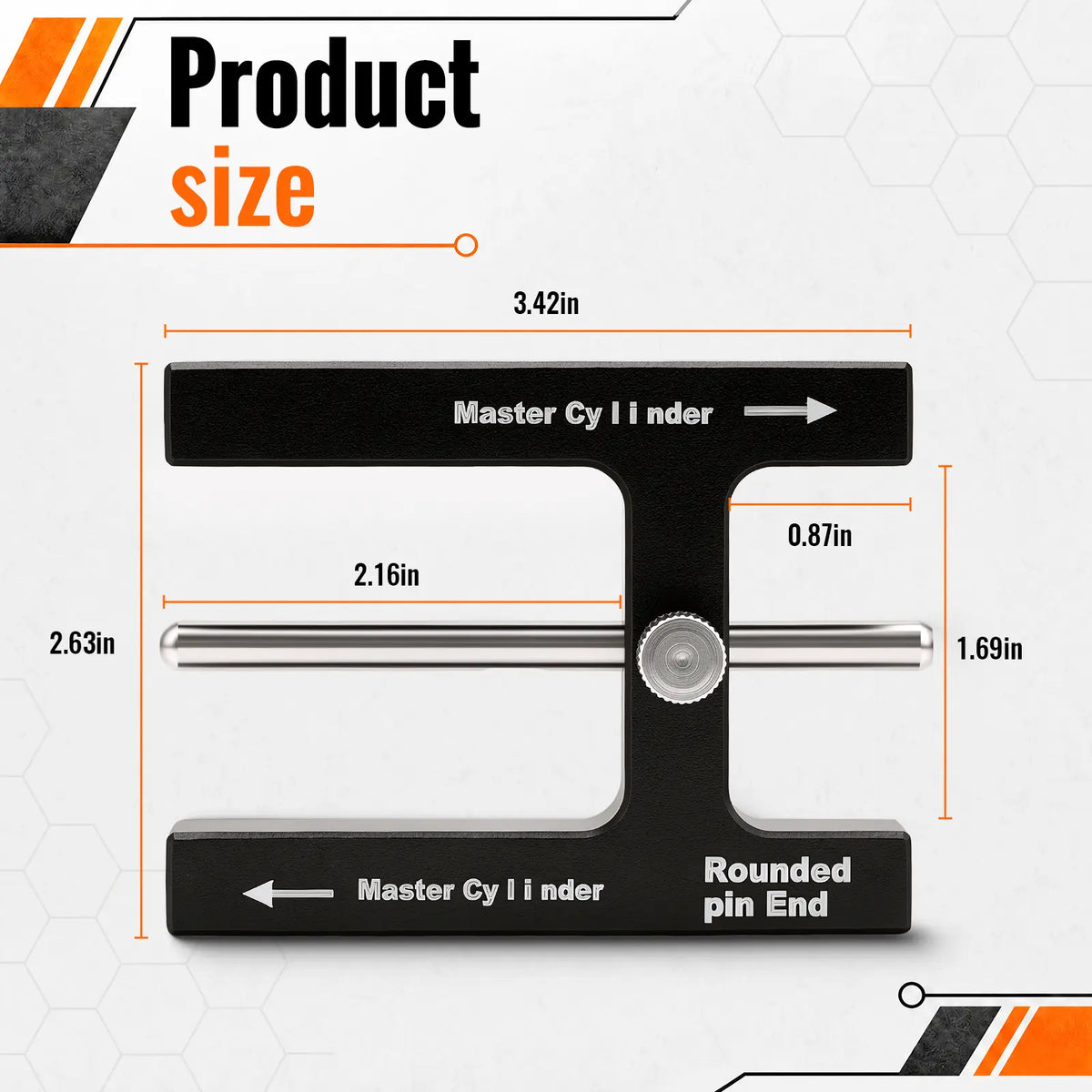

Approximate tool dimensions:

Overall Width: 3.42 in
Overall Height: 2.63 in
Inner Measuring Width: 2.16 in
Inner Height: 1.69 in

Compact enough to keep in a brake service drawer, mechanic's toolbox, or mobile repair kit.

✅ A Smarter Way to Set Brake Booster Push Rod Depth

For mechanics who want a repeatable way to compare master cylinder depth with brake booster push rod position, this simple gauge removes much of the measuring guesswork.

Measure once. Transfer the setting. Adjust with confidence.
