Adjustable Aluminum Door Hinge Mortising Jig Kit

Adjustable Aluminum Door Hinge Mortising Jig Kit

🚪 Precision Hinge Mortises Made Easy

Get clean, consistent hinge cutouts without complicated measuring or repeated trial and error. This adjustable hinge jig securely clamps to the door edge and guides your router for accurate hinge mortising.

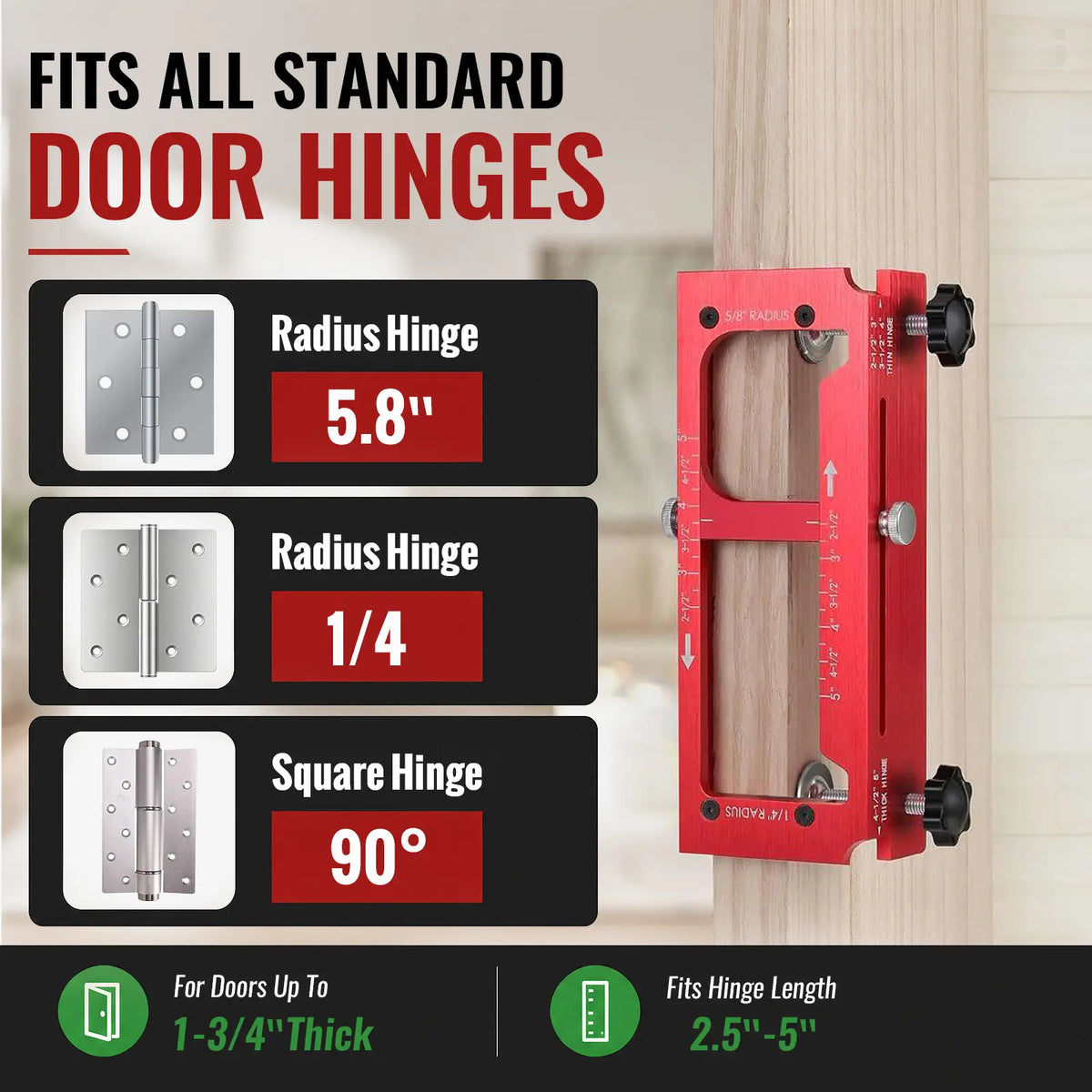

📏 Fits Most Standard Door Hinges

The adjustable design accommodates hinge lengths from 2.5" to 5", making it suitable for a wide range of common residential doors, cabinet doors, and woodworking projects.

🔄 3 Common Corner Styles

Designed for 1/4" radius, 5/8" radius, and square-corner hinges, giving you the flexibility to work with different hinge styles using one convenient jig.

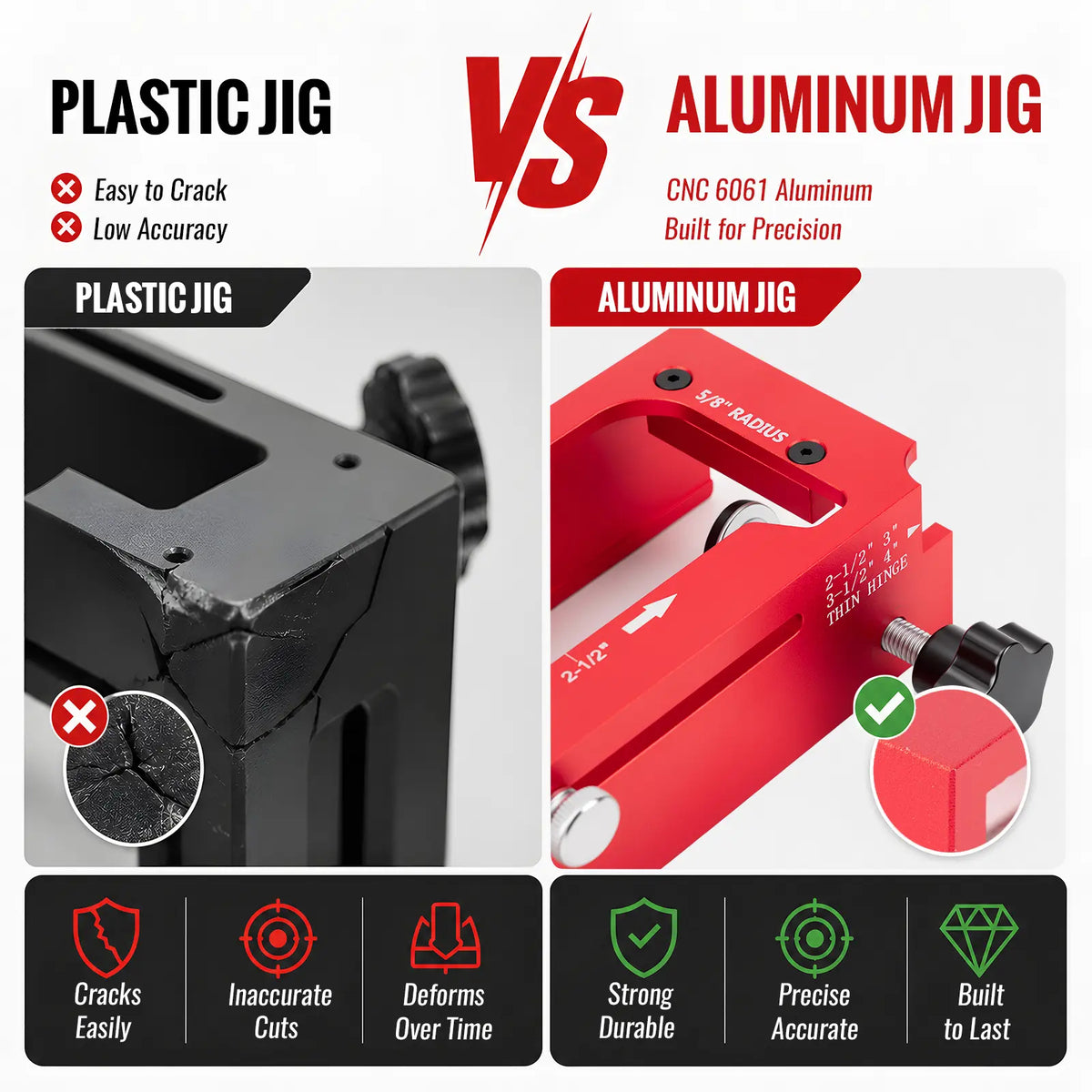

🛡️ Durable Aluminum Construction

Built from precision-machined aluminum for greater rigidity, stability, and repeatable accuracy. Unlike lightweight plastic templates, the sturdy metal construction is designed for long-term workshop use.

⚙️ Fully Adjustable Design

Integrated measurement markings and an adjustable center guide make it easy to match the template to your hinge size and position before routing.

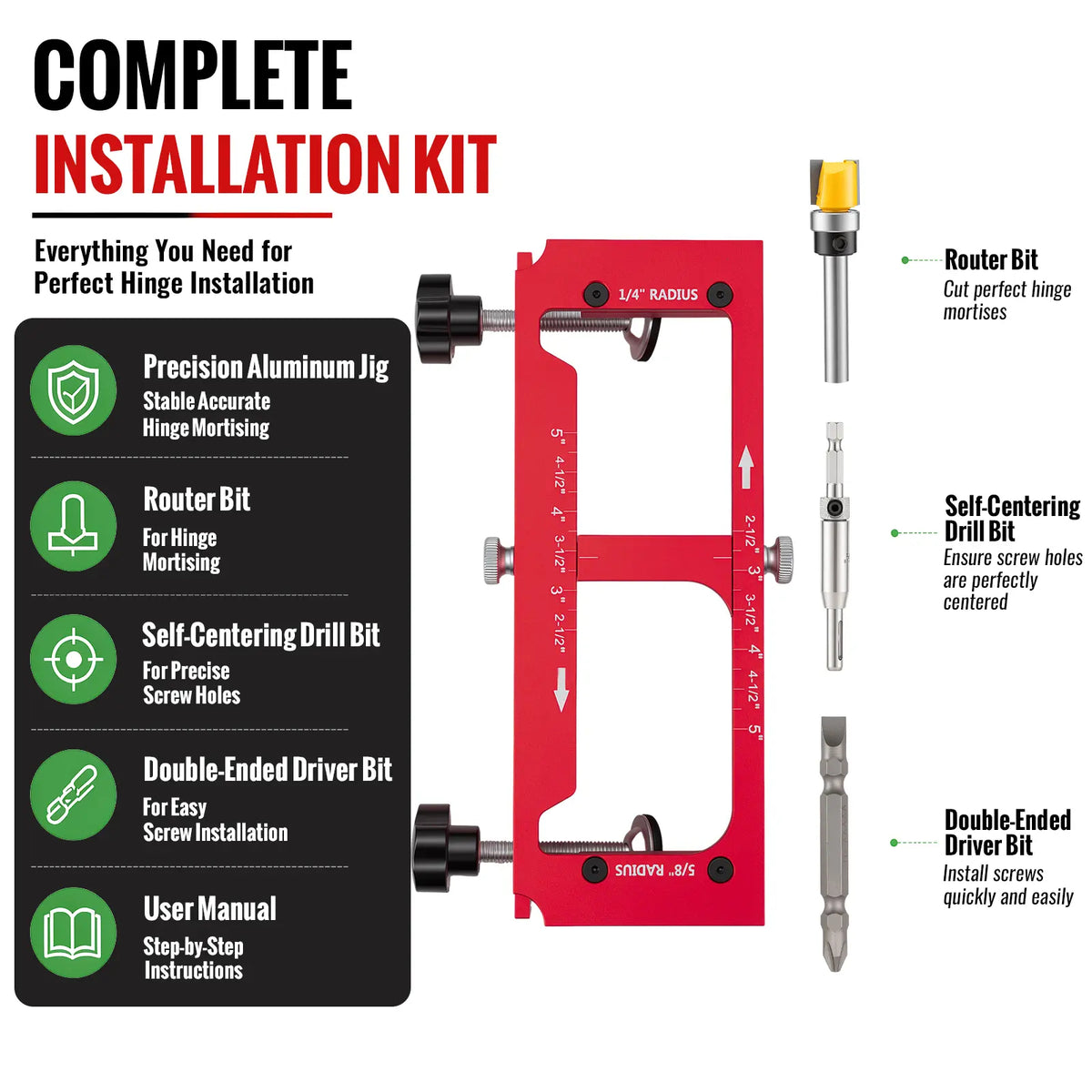

🛠️ Complete Installation Kit

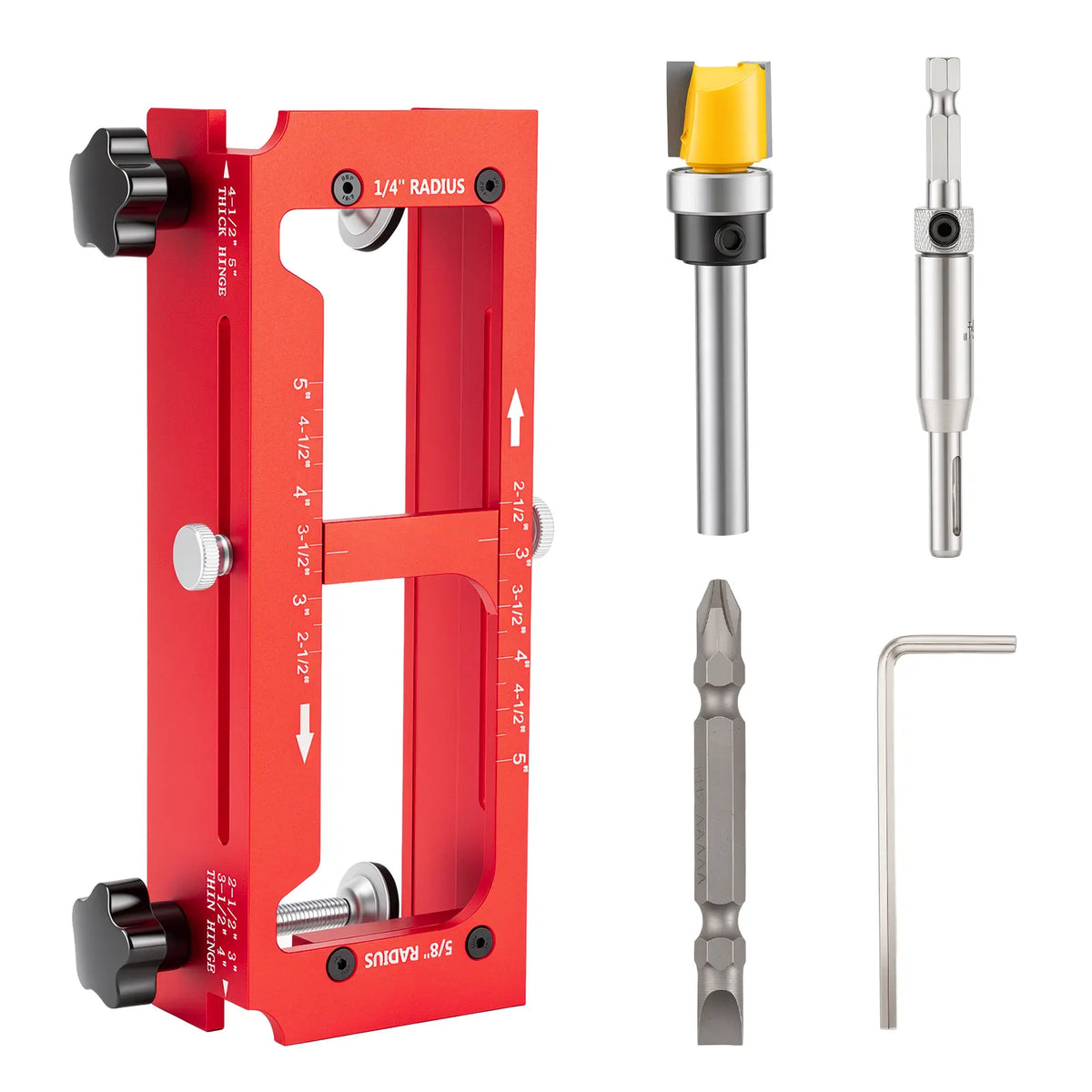

Includes an adjustable aluminum hinge jig, router bit, self-centering drill bit, double-ended driver bit, and hex key — everything you need to complete hinge installation efficiently.

✅ Simple 6-Step Installation

1. Securely clamp the jig to the door.
   2. Adjust the guide to match the hinge length.
   3. Set the router bit cutting depth.
   4. Route the hinge mortise.
   5. Drill the hinge screw holes.
   6. Install and tighten the hinge screws.

🎯 Self-Centering Screw Holes

The included self-centering drill bit helps position hinge screw holes accurately, reducing misalignment and making final installation cleaner and easier.

🏠 Ideal for New Doors & Repairs

Perfect for door replacement, hinge upgrades, remodeling, cabinet projects, woodworking, and general home improvement work.

📐 Compatibility:
Hinge Length: 2.5"–5"
Corner Types: 1/4" Radius / 5/8" Radius / Square Corner
Suitable Door Thickness: Up to approximately 1-3/4"

🚪 Measure Less. Route Accurately. Install Hinges with Confidence.
