Toe Alignment Tool Plates – Check Wheel Alignment with Confidence

🚗 Toe Alignment Tool Plates – Check Wheel Alignment with Confidence

Get a clearer picture of your vehicle’s toe alignment without complicated measuring setups. These heavy-duty alignment plates work with tape measures to help you compare front and rear wheel distances quickly and consistently.

Accurate Measurement · Stable Positioning · Durable Construction · Easy DIY Setup

🎯 Check Toe Alignment More Easily

Designed for DIY mechanics, garages, and repair shops, the alignment plates provide convenient reference points for measuring the front and rear distances between matching wheels.

Compare the measurements to help identify toe-in or toe-out conditions before making adjustments.

✔ Quick wheel-to-wheel measurement
✔ Helps identify alignment differences
✔ Suitable for home garages and workshops
✔ Simple mechanical measuring method

【图片4放这里｜Precise Measurement 前束测量场景图】

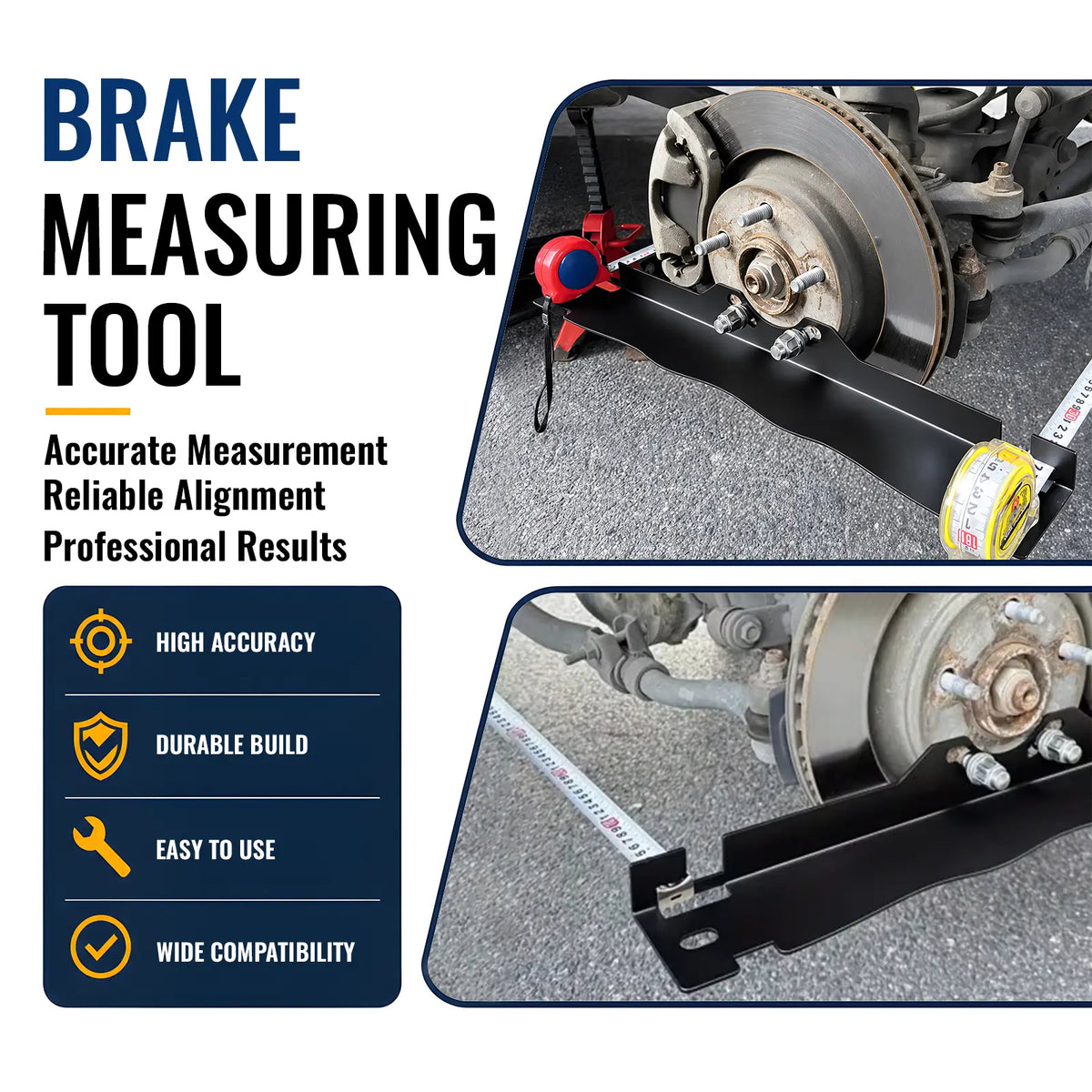

📏 More Consistent Measurement

The rigid plate design creates stable measuring points on both sides of the vehicle, helping reduce inconsistent tape placement during repeated measurements.

Measure the distance at the front and rear of the wheels, compare the results, and use the difference as a reference when checking toe alignment.

NOTE: Tape measures are not included.

🔒 Specialized Tape-Measure Grooves

Integrated measuring slots help keep the tape measure positioned more securely during use. This makes it easier to maintain consistent measuring points and reduces unnecessary movement while taking readings.

✔ Stable tape positioning
✔ Easier repeat measurements
✔ Improved measuring consistency
✔ Practical workshop design

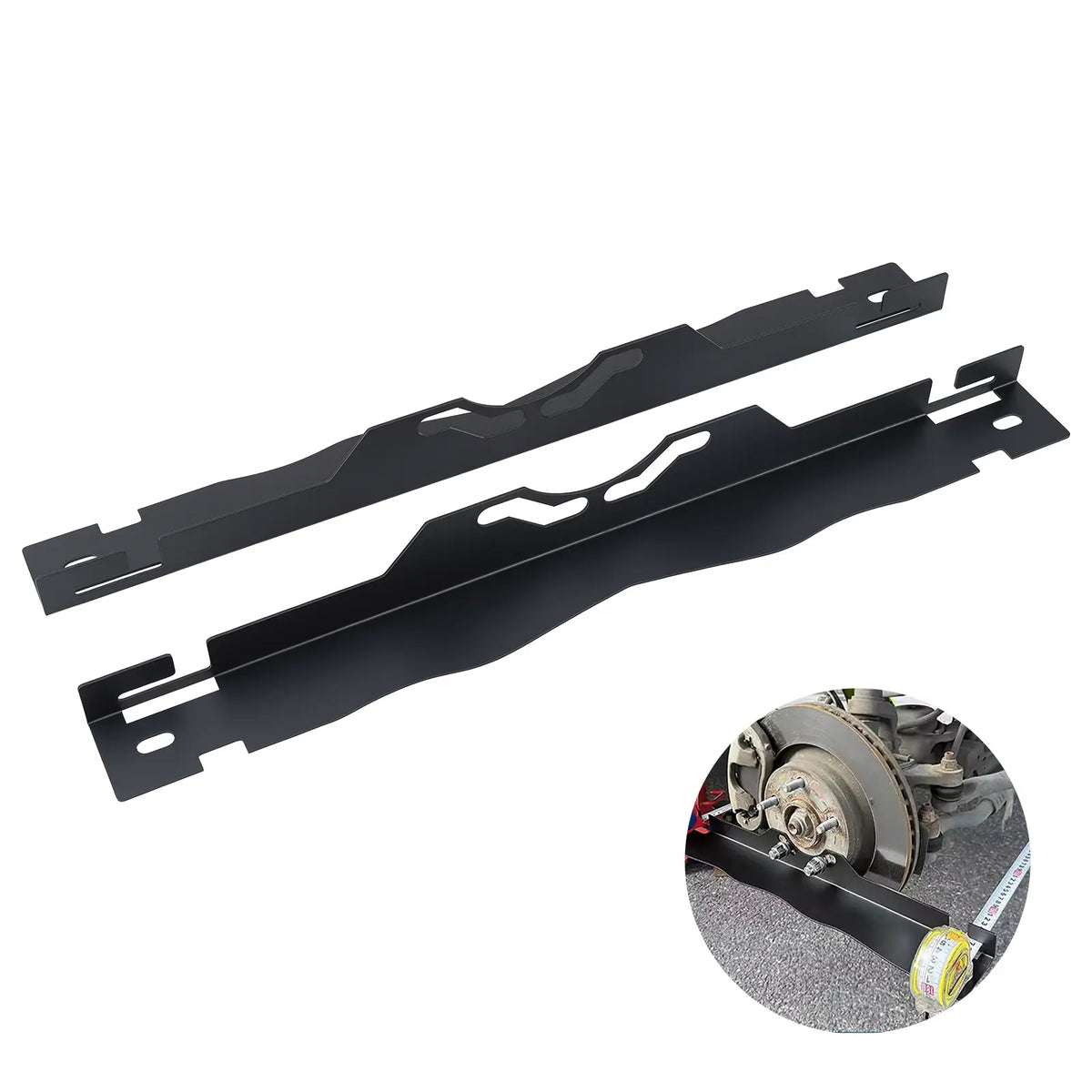

🛠️ Durable 201 Stainless Steel Construction

Built from sturdy 201 stainless steel, the tool plates are designed for repeated use in garages, workshops, and automotive repair environments.

The rigid metal construction helps maintain shape during measurement while providing dependable long-term durability.

✔ Stainless steel construction
✔ Strong and rigid design
✔ Built for repeated use
✔ Suitable for garage environments

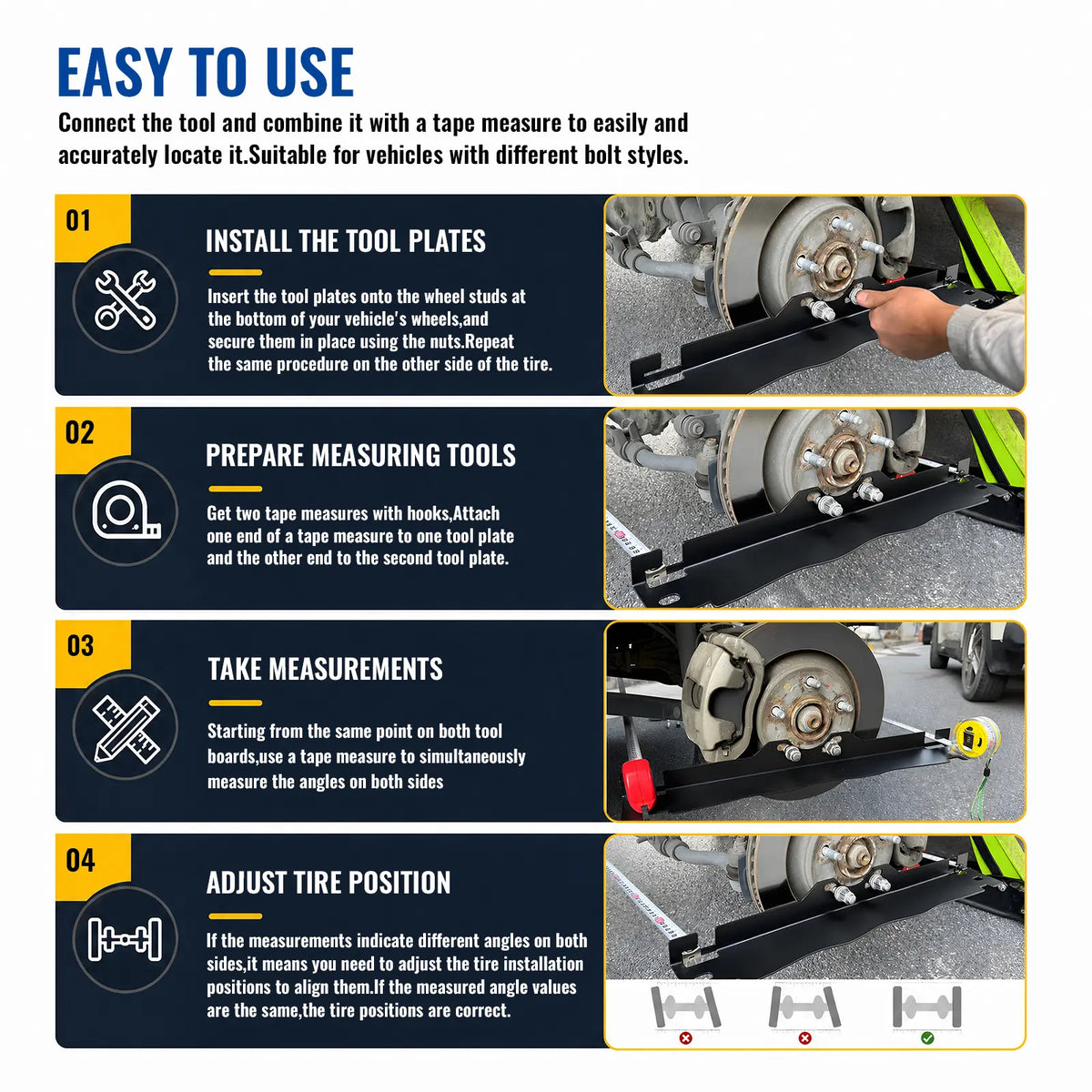

⚙️ Simple 4-Step Measurement

STEP 1 — Install the Tool Plates
Position the alignment plates on corresponding wheel studs and secure them properly.

STEP 2 — Position the Tape Measures
Place the tape measures into the designated measuring slots on both plates.

STEP 3 — Take Front & Rear Measurements
Measure from the same reference points at the front and rear of the wheels.

STEP 4 — Compare the Results
Compare both readings to help determine whether toe adjustment may be needed.

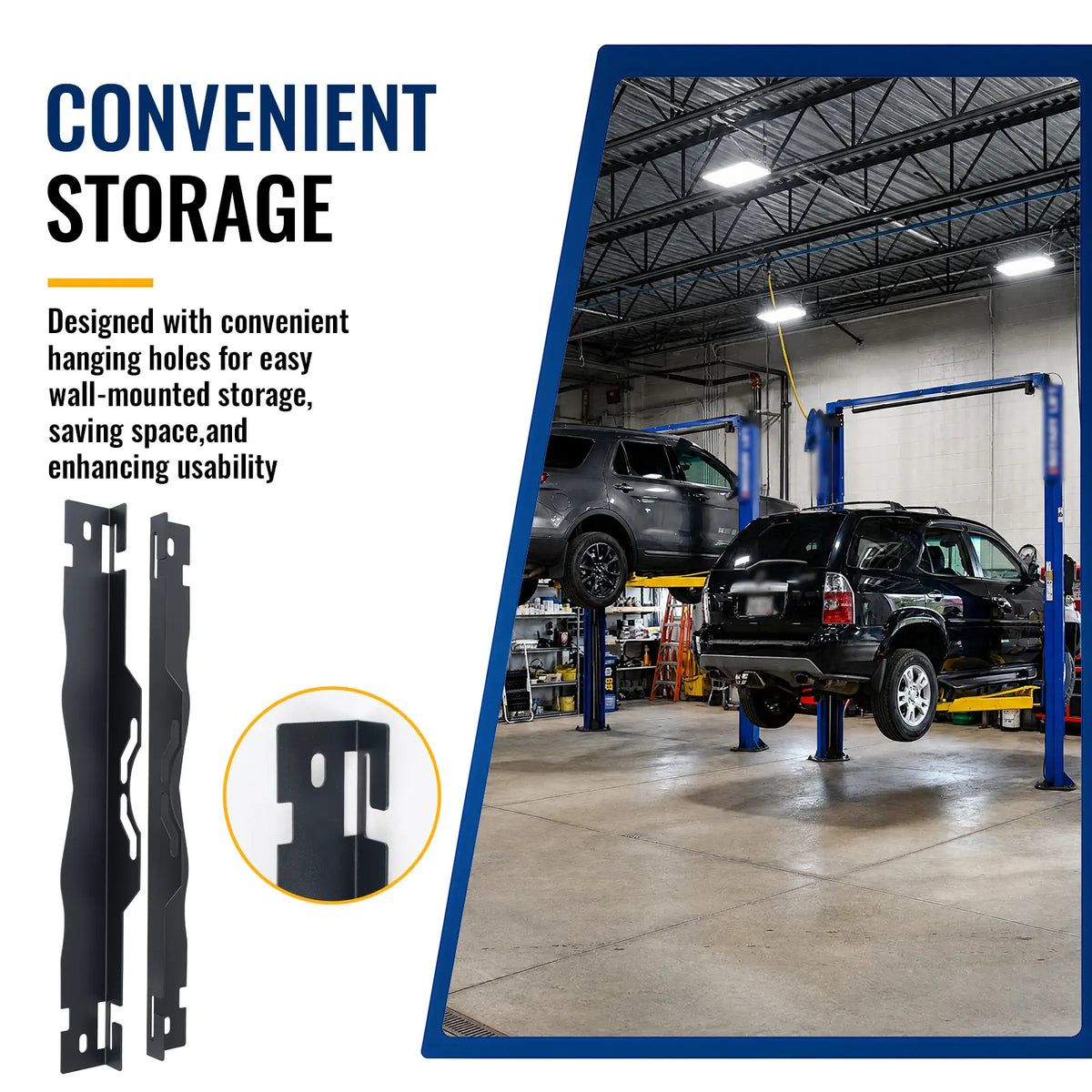

🧰 Easy Wall-Mounted Storage

Built-in hanging holes make the plates easy to store when the job is finished. Hang them on a garage or workshop wall to keep your workspace cleaner and reduce unnecessary toolbox clutter.

✔ Space-saving storage
✔ Convenient hanging holes
✔ Easy access in the workshop
✔ Professional garage-friendly design

🚘 Ideal For

• DIY vehicle maintenance
• Automotive repair shops
• Garage alignment checks
• Suspension and steering work
• Routine toe inspection
